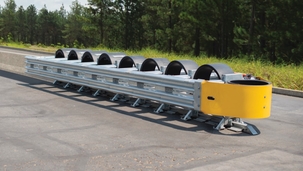

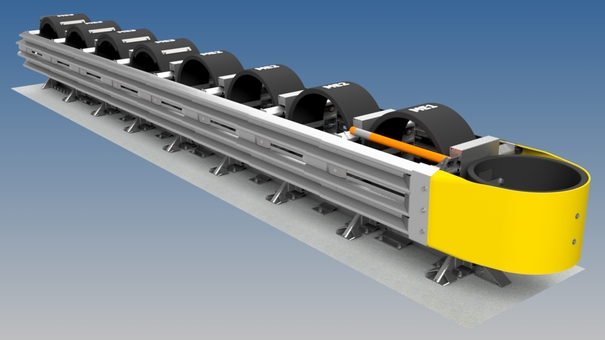

The QuadGuard^® Elite M10 is a redirective, non-gating crash cushion that consists of a flex-belt nose, and High Density Polyethylene (HDPE) cylinders surrounded by a framework of steel Quad-Beam™ panels. The system is tested to the Manual for Assessing Safety Hardware (MASH) Test Level 3. The QuadGuard^® Elite M10 is available in 24” or 69″ wide configurations and has transitions to concrete barrier, guardrail, and other roadside hazards.

Typical Test Level 3 Eight-Bay Unit:

• 24″ System Length: 27′-2″
• 24″ Wide (610 mm)
• 69″ System Length: 27′-1″
• 69″ Wide (1.75 m)
• 4400-5400 lbs. (2000-2450 kg)

• Flex-belt nose.
• Tested to MASH TL-3.
• High strength Quad-Beam™ panels.



The QuadGuard^® Elite M10, as a member of the QuadGuard^® family of crash cushions, consists of many of the same components as the QuadGuard^®.

• Cylinders are potentially reusable after an impact within MASH crash test standards.*
• Anchorage options include: asphalt, concrete.



Back-Up Structure and Attachments

• Bridge pier(s) and parapet(s)
• Square block(s)
• Temporary and permanent concrete barrier(s)
• Thrie-beam
• W-beam



*After an impact, the product must be inspected and evaluated per the direction of the specifying roadway authority. The ultimate decision on reusability rests with the specifying roadway authority and/or state DOT.
