OVERVIEW

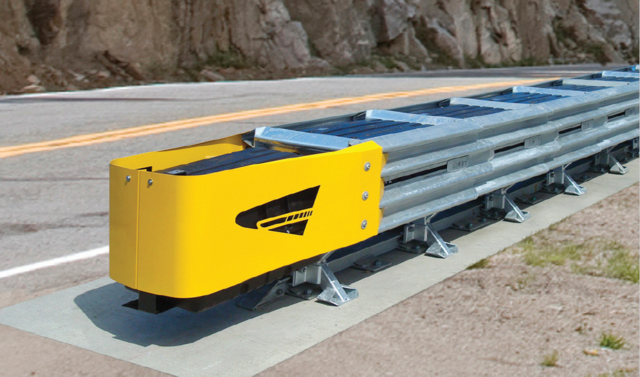

The QuadGuard® M10 is a redirective, non-gating crash cushion that consists of an engineered steel nose and crushable, energy absorbing cartridges surrounded by a framework of steel Quad-Beam™ panels. The system is tested to the Manual for Assessing Safety Hardware (MASH) Test Level 3 and Test Level 2. It can be used to shield fixed objects of 24″ (610 mm) wide. A wide Test Level 3 system, the QuadGuard M Wide, is also available for fixed objects up to 69” (1.75 m).
SPECIFICATIONS

QuadGuard M10 Test Level 3 System

  • System Length – 22’ 0″ (6.71 m)
  • System Width – 24″ (610 mm)

QuadGuard M Wide Test Level 3 System

  • System Length – 22’ 0″ (6.71 m)
  • System Width – 69″ (1.75 m)

QuadGuard M10 Test Level 2 System

  • System Length – 13’ 0″ (3.96 m)
  • System Width – 24″ (610 mm)
FEATURES
  • Self-supporting steel nose.
  • Tension strut backup.
  • Monorail guide stabilizers.
  • Anchorage in concrete or asphalt.
  • High strength Quad-Beam™ panels.
  • Does not use anchoring chains or tension cables.



The QuadGuard® M10, as a member of the QuadGuard® family of crash cushions, consists of many of the same components as the original Test Level 3 QuadGuard® platform and framework in addition to an engineered steel nose and monorail shims.
ASSEMBLY & MAINTENANCE
  • Damaged cartridges are replaceable.
  • Potentially reusable after an impact within MASH crash test standards.*



*After an impact, the product must be inspected and evaluated per the direction of the specifying roadway authority. The ultimate decision on reusability rests with the specifying roadway authority and/or state DOT.
