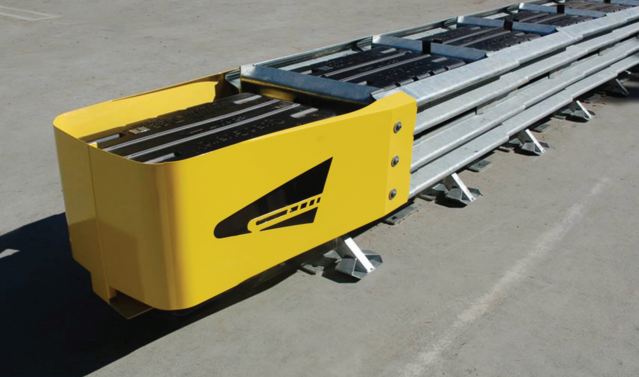

The QuadGuard^® II is a redirective, non-gating crash cushion that consists of an engineered steel nose and crushable, energy absorbing cartridges surrounded by a framework of steel Quad-Beam™ panels. The system is tested to NCHRP Report 350 Test Level 2 and Test Level 3. The Test Level 2 model is 25% shorter than the original QuadGuard^® measuring less than 10’ (3 m). The Test Level 3 model is nearly 3’ (.9 m) shorter in length than its predecessor. The QuadGuard^® II can be used to shield fixed objects 24” to 126” wide (610 mm to 3.2 m) while using less than 19’ in length (22’ for the 126”).

Test Level 2 Two-Bay Unit

(Available in widths of 24″, 30″, 36″ & 48”)

• 9’ 11” Long (3.03 m)
• 24” (610 mm) Min. Width and 48” (1.22 m) Max. Width at Backup Structure
• 24” Wide Unit: 1,210 lbs. (549 kg)

• Self-supporting steel nose, custom cut-out available.
• Monorail guide shims to stabilize the diaphragms.
• Footprint is 25% less for TL-2 and 3’ less for TL-3 than the original QuadGuard^®.
• High strength Quad-Beam™ panels.
• Does not use anchoring chains or tension cables.
• Compact, modular design tested to speeds from 25 mph (40 km/h) to 62 mph (100 km/h).



The QuadGuard^® II, as a member of the QuadGuard^® family of crash cushions, consists of many of the same components as the QuadGuard.

• Damaged cartridges are replaceable.
• Monorail base does not use anchoring chains or tension cables.
• Anchorage options include asphalt, concrete, and soil-drive pile.
• Potentially reusable after an impact within NCHRP Report 350 crash test standards.*



Back-Up Structure and Attachments

• Simplified backups – Tension strut or concrete
• Bridge pier(s) and parapet(s)
• Square block(s)
• Temporary and permanent concrete barrier(s)
• Thrie-beam
• W-beam



*After an impact, the product must be inspected and evaluated per the direction of the specifying roadway authority. The ultimate decision on reusability rests with the specifying roadway authority and/or state DOT.
